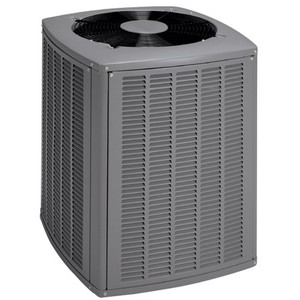

Armstrong 4SCU14LE 14-SEER R-410A Split System Outdoor Louvered Enhanced Condensing Unit, 3.5 Ton, 42000 Btu/h

Armstrong 4SCU14LE 14-SEER R-410A Split System Outdoor Louvered Enhanced Condensing Unit, 3.5 Ton, 42000 Btu/h



Allied Air Enterprises 4SCU14LE142P1

  • Mfg.Part # : 4SCU14LE142P1
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4SCU14LE142P1
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Armstrong Air’s 4SCU14LE proprietary heat transfer system. A specially designed fan shroud pulls air evenly throughout the air conditioner’s coil surface. The coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air. All combine for maximum heat transfer and efficiency. SEER (Seasonal Energy Efficiency Ratio) rates the energy efficiency of your cooling equipment. The higher the SEER rating, the more efficiently your unit operates, saving you money on utility bill. Heavy-duty compressor blanket greatly reduces operating sound so your outdoor entertaining is not interrupted. The combination of both high and low pressure switches give additional reliability to each Armstrong Air cooling unit. The high pressure switch prevents operation in the event that refrigerant pressures exceed safe levels, protecting the compressor. In the event that your unit does not have enough refrigerant, the low pressure switch prevents the unit from drawing in moisture and other contaminants while operating


  • Trade available components
  • Short cycle protection
  • Service valves positioned for quick installation and easy service
  • Sealed contactor with lugs
  • Rounded corners for safety and attractive, clean appearance
  • R410A refrigerant
  • PVC coated wire fan discharge grille
  • Protected against high temperature motor overload conditions
  • High-efficiency scroll compressor
  • High and low pressure switches factory installed
  • Heavy-duty compressor sound blanket for quiet operation
  • Grommet-mounted compressor for quiet operation
  • Full metal louvered panel coil guard protection, that is easily removed for coil cleaning
  • Filter drier shipped loose for installation flexibility
  • External gauge ports for easy service
  • Enhanced aluminum fins and copper tubing for high efficiency and capacity. Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • Controls located in corner for easy installation and service
  • Charged for 15 ft of line set

Condensing Unit, Split System, 4SCU14LE Series, Outdoor, Louvered Enhanced Unit, Cooling Capacity: 42000 BTUH, 14 SEER, 11.5 EER, Capacity in Ton: 3.5 ton, Horse Power: 1/4 HP, 208 to 230V Volt, 60 Hz Frequency, 1-Phase Phase, Min. Circuit Amp: 24.1A, 40A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 7/8 inch, Sound Rating: 80 dBa, Dimensions: 29.38 inch L x 31.25 inch W x 29.75 inch H, Energy Star, Standards: AHRI Certified, ETL Listed, 208 lb Weight, Includes: Low Ambient Control, TXV Kits, Crankcase Heater, Hard Start Kits, 10 yr Limited Warranty on Compressor, 10 yr Limited Warranty on all Parts Warranty

  • Series: 4SCU14LE
  • Type: Split System
  • Unit Type: Outdoor, Louvered Enhanced
  • Cooling Capacity: 42000 BTUH
  • Voltage Rating: 208 to 230V
  • EER: 11.5
  • SEER: 14
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Capacity in Ton: 3.5 ton
  • Liquid Line Size: 3/8 inch
  • Horse Power: 1/4 HP
  • Suction Line Size: 7/8 inch
  • Min. Circuit Amp: 24.1A
  • Max. Fuse Amp: 40A
  • Dimensions: 29.38 inch L x 31.25 inch W x 29.75 inch H
  • Sound Rating: 80 dBa
  • Weight: 208 lb
  • Energy Star: Yes
  • Refrigerant: R-410A
  • Warranty: 10 yr Limited Warranty on Compressor, 10 yr Limited Warranty on all Parts
  • Locked Rotor Amperage: 112A
  • Nominal RPM[Fan Motor]: 825
  • Rated Load Amperage[Compressor]: 17.9A
  • Rated Load Amperage[Fan Motor]: 1.7A
  • Refrigeration Charge: 138 oz
  • Includes: Low Ambient Control, TXV Kits, Crankcase Heater, Hard Start Kits
  • Standards: AHRI Certified, ETL Listed
