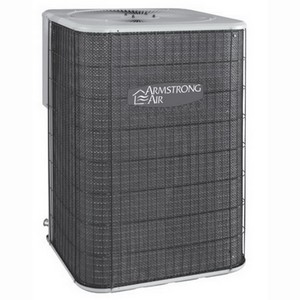

Armstrong 13ACD 13-SEER Split System Condenser Dry Charged Nitrogen Charged Outdoor Single Stage Condensing Unit, 2.5 Ton, 30000 Btu/h

Armstrong 13ACD 13-SEER Split System Condenser Dry Charged Nitrogen Charged Outdoor Single Stage Condensing Unit, 2.5 Ton, 30000 Btu/h



Allied Air Enterprises 13ACD030

  • Mfg.Part # : 13ACD030
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR13ACD030
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Allied Air 13ACD dry-charge system component is a powerful, smartly designed air conditioner that uses advanced Armstrong Air™ technology to deliver outstanding performance and energy eficiency all summer long. Built with the craftsmanship and attention to detail for which armstrong air is known. Armstrong Air’s proprietary heat transfer system. A specially designed fan shroud pulls air evenly throughout the air conditioner’s coil surface. The coil features rifled tubing to enhance refrigerant low, while lanced coil fins increase surface contact between metal and air. All combine for maximum heat transfer and eficiency, high pressure switch feature prevents operation of your cooling unit in the event that refrigerant pressures exceed safe levels, protecting the compressor. Seasonal Energy Eficiency Ratio (SEER) of 13, the 13ACD meets or exceeds eficiency standards created by the government, this means it can keep you cool using less energy


  • Top discharge directs hot air away from living area and shrubbery
  • Nitrogen charged for replacement of R22 components only
  • High-quality condenser coil with copper tubing and enhanced louvered fin for maximum heat transfer capacity
  • Easy access to electrical panels
  • Corner mounted service valves for easy hook-up and service
  • Available with wire guard coil protection
  • All units factory run tested

Condensing Unit, Split System, Condenser Dry Charged, Nitrogen Charged, 13ACD Series, Outdoor, Single Stage Unit, Cooling Capacity: 30000 BTUH, 13 SEER, 11 EER, Capacity in Ton: 2.5 tons, Horse Power: 1/5 HP, 208/230V Volt, 60 Hz Frequency, 1-Phase Phase, Min. Circuit Amp: 18.8A, 30A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 3/4 inch, Sound Rating: 76 dBa, Dimensions: 24.25 inch W x 24.25 inch D x 33.25 inch H, Standards: UL and ULC Approved, 136 lb Weight, 5 yr Limited Warranty on Compressor, 5 yr Limited Warranty on all Parts Warranty

  • Series: 13ACD
  • Type: Split System, Condenser Dry Charged, Nitrogen Charged
  • Unit Type: Outdoor, Single Stage
  • Cooling Capacity: 30000 BTUH
  • Voltage Rating: 208/230V
  • Voltage Rating: 197-253V
  • EER: 11
  • SEER: 13
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Capacity in Ton: 2.5 tons
  • Liquid Line Size: 3/8 inch
  • Horse Power: 1/5 HP
  • Suction Line Size: 3/4 inch
  • CFM: 900
  • Min. Circuit Amp: 18.8A
  • Max. Fuse Amp: 30A
  • Dimensions: 24.25 inch W x 24.25 inch D x 33.25 inch H
  • Sound Rating: 76 dBa
  • Weight: 136 lb
  • Energy Star: No
  • Warranty: 5 yr Limited Warranty on Compressor, 5 yr Limited Warranty on all Parts
  • Full Load Amperage: 1.1A
  • Locked Rotor Amperage: 67A
  • Nominal RPM[Outdoor Fan Motor]: 1075
  • Rated Load Amperage[Compressor]: 14.1A
  • Standards: UL and ULC Approved
