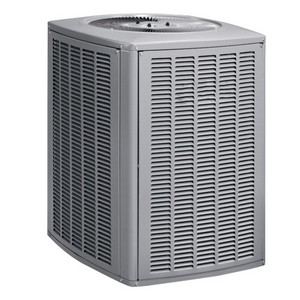

Armstrong 4SCU13LB1 13-SEER R-410A Split System Outdoor Louvered Basic Condensing Unit, 3.5 Ton, 42000 Btu/h

Armstrong 4SCU13LB1 13-SEER R-410A Split System Outdoor Louvered Basic Condensing Unit, 3.5 Ton, 42000 Btu/h



Allied Air Enterprises 4SCU13LB142P

  • Mfg.Part # : 4SCU13LB142P
  • Mfg.Name : Allied Air Enterprises
  • Part # : AR4SCU13LB142P
  • Est Delivery Time: By
  • Price:
Add To Cart >
Note: Branch Customer? Please login to your account to see local branch availability

  • Free ReturnsFree Returns (for 60 days)
  • Free ShippingFree Shipping on orders over $49

Armstrong 4SCU13LB1 Air’s proprietary heat transfer system. A specially designed fan shroud pulls air evenly throughout the air conditioner’s coil surface. The coil features rifled tubing to enhance refrigerant flow, while lanced coil fins increase surface contact between metal and air. All combine for maximum heat transfer and efficiency. SEER (Seasonal Energy Efficiency Ratio) rates the energy efficiency of your cooling equipment. When properly matched with a variable speed furnace or air handler, outdoor unit can, in many cases, provide an elevated SEER rating. On Matched Armstrong air indoor coil, Drain pans are infused with an antibacterial agent that destabilizes the membrane of microorganism cells, disrupting the cellular function of odor-causing mold and bacteria so that they can no longer grow or reproduce. Reliable single-stage compressors are made from quality materials that are built to provide you year-after-year comfort. High pressure switch prevents operation of your cooling unit in the event that refrigerant pressures exceed safe levels, protecting the compressor


  • Trade available components
  • Stamped, one piece top
  • Service valves positioned for quick installation and easy service
  • Rounded corners for safety and attractive, clean appearance
  • R410A refrigerant
  • Protected against high temperature motor overload conditions
  • Indoor coil orifice shipped with outdoor unit for optimum efficiency and capacity
  • High-efficiency scroll compressor
  • High pressure switch
  • Grommet-mounted compressor for quiet operation
  • Full metal louvered panel coil guard protection that is easily removed for coil cleaning
  • Filter drier shipped loose for installation flexibility
  • External gauge ports for easy service
  • Enhanced aluminum fins and copper tubing for high efficiency and capacity. Raised coil prevents debris from collecting in bottom of coil and causing loss of airflow
  • Controls located in corner for easy installation and service
  • Charged for 15 ft of line set

Condensing Unit, Split System, 4SCU13LB1 Series, Outdoor, Louvered Basic Unit, Cooling Capacity: 42000 BTUH, 13 SEER, 10.5 EER, Capacity in Ton: 3.5 ton, Horse Power: 1/4 HP, 208/230V Volt, 60 Hz Frequency, 1-Phase Phase, Min. Circuit Amp: 28.1A, 45A Max. Fuse, Liquid Line Size: 3/8 inch, Suction Line Size: 3/4 inch, Sound Rating: 77 dBa, Dimensions: 29.38 inch W x 31.25 inch D x 29.75 inch H, Standards: AHRI Certified, ETL Listed, 201 lb Weight, Includes: Low Ambient Control, Thermal Expansion Valve Kits, Crankcase Heater, Sound Blanket, Loss Of Charge Kit, Time Delay, Short Cycle Protection, Freezestat Kit, Hard Start Kit, 10 yr Limited Warranty on Compressor, 10 yr Limited Warranty on all Parts Warranty

  • Series: 4SCU13LB1
  • Type: Split System
  • Unit Type: Outdoor, Louvered Basic
  • Cooling Capacity: 42000 BTUH
  • Voltage Rating: 208/230V
  • Voltage Rating: 197-253V
  • EER: 10.5
  • SEER: 13
  • Phase: 1-Phase
  • Frequency Rating: 60 Hz
  • Capacity in Ton: 3.5 ton
  • Liquid Line Size: 3/8 inch
  • Horse Power: 1/4 HP
  • Suction Line Size: 3/4 inch
  • CFM: 1400
  • Min. Circuit Amp: 28.1A
  • Max. Fuse Amp: 45A
  • Dimensions: 29.38 inch W x 31.25 inch D x 29.75 inch H
  • Sound Rating: 77 dBa
  • Weight: 201 lb
  • Energy Star: No
  • Warranty: 10 yr Limited Warranty on Compressor, 10 yr Limited Warranty on all Parts
  • Locked Rotor Amperage: 90A
  • Nominal RPM[Fan Motor]: 825
  • Rated Load Amperage[Compressor]: 21.1A
  • Rated Load Amperage[Fan Motor]: 1.7A
  • Refrigerator Charge+: 104 oz
  • Includes: Low Ambient Control, Thermal Expansion Valve Kits, Crankcase Heater, Sound Blanket, Loss Of Charge Kit, Time Delay, Short Cycle Protection, Freezestat Kit, Hard Start Kit
  • Standards: AHRI Certified, ETL Listed
